Multifunctional Three Wheel Double Barrel Sunshade Sanitation Vehicle

• Product Name:Multifunctional three-wheel double-barrel sunshade sanitation vehicle

  ‌

  Multifunctional Three-Wheel Double-Barrel Sunshade Sanitation Vehicle‌
  Compact electric trike designed for narrow alleys/residential areas. Features ‌dual 60–120L HDPE barrels‌ (total 240L) for waste segregation, leak-proof lids, and a foldable sunshade canopy. Powered by ‌48V/80Ah LiFePO4 battery‌ (80–100 km range, 3hrs charge) with a 500W brushless motor (-10°C–45°C operability).

  Steel-reinforced frame supports 400kg payload; hydraulic-assisted tilting simplifies manual unloading. Includes regenerative braking ($0.08/km cost) and IP54-rated components. Ergonomic handlebar with LCD display for route tracking. Optional RFID bins or GPS fleet management.

  Zero-emission, 70% quieter than fuel-powered trikes, CE-certified. Ideal for parks, markets, and campuses. Reduces labor by 50% with 360° maneuverability. Optional upgrades: LED work lights, anti-tip sensors, or compact crusher for bulk waste.

• Power	800W-1000W
  Voltage	60V
  Maximum Speed	30-50Km/h
  Charge Time(h)	7-9h
  Grade Ability	20-25°
  Driving Mileage	70-90km
  Use For	Passenger cargo
  Body Type	Open
  Certification	CCC
  Place of Origin	Sichuan, China

• Model Name	DS1500D-9D
  Dimensions (mm)	2940,3040*1095,1145*1700
  Wheelbase (mm)	1910,1910
  Wheel Track (mm)	887,931
  Curb weight(kg)	275
  Minumum ground clearance(mm)	≥150
  Minimum turning radius(m)	≤4
  Rated Loading capacity (kg)	300		500
  Max speed(km/h)	25		40
  Maximum Climbing Slope (%)	≤25
  battery	72V45AH		72V80AH
  Economic speed range (km)	50-60		70-80
  Charging time (h)	6～8h

•
•
•
•
•
•

•

•



•



• Q: What is your delivery time?
  A: The typical delivery time is 10-20 working days from order placement to production completion. However, the exact timeline may vary depending on the specifics of each order.

  Q: Can I visit your factory before placing an order?
  A: Absolutely! We welcome factory visits. If an in-person visit isn’t feasible, we can arrange a virtual tour.

  Q: Can I customize my products?
  A: Certainly! We are happy to work with you on product customization.

  Q: Can I become a dealer for your brand?
  A: Yes, we are open to discussing opportunities for regional dealership partnerships.

  Q: What are your warranty terms?
  A: We offer varying warranty periods depending on the product. Please reach out for detailed warranty information.

  Q: What are your payment terms?
  A: Our payment terms generally involve an upfront deposit, with the balance due prior to shipment. We accept various payment methods, including bank transfers and credit cards. For specific details related to your order, please contact us.

Multifunctional Sanitation Vehicle

Double Barrel Sanitation Vehicle

Three Wheel sanitation vehicles

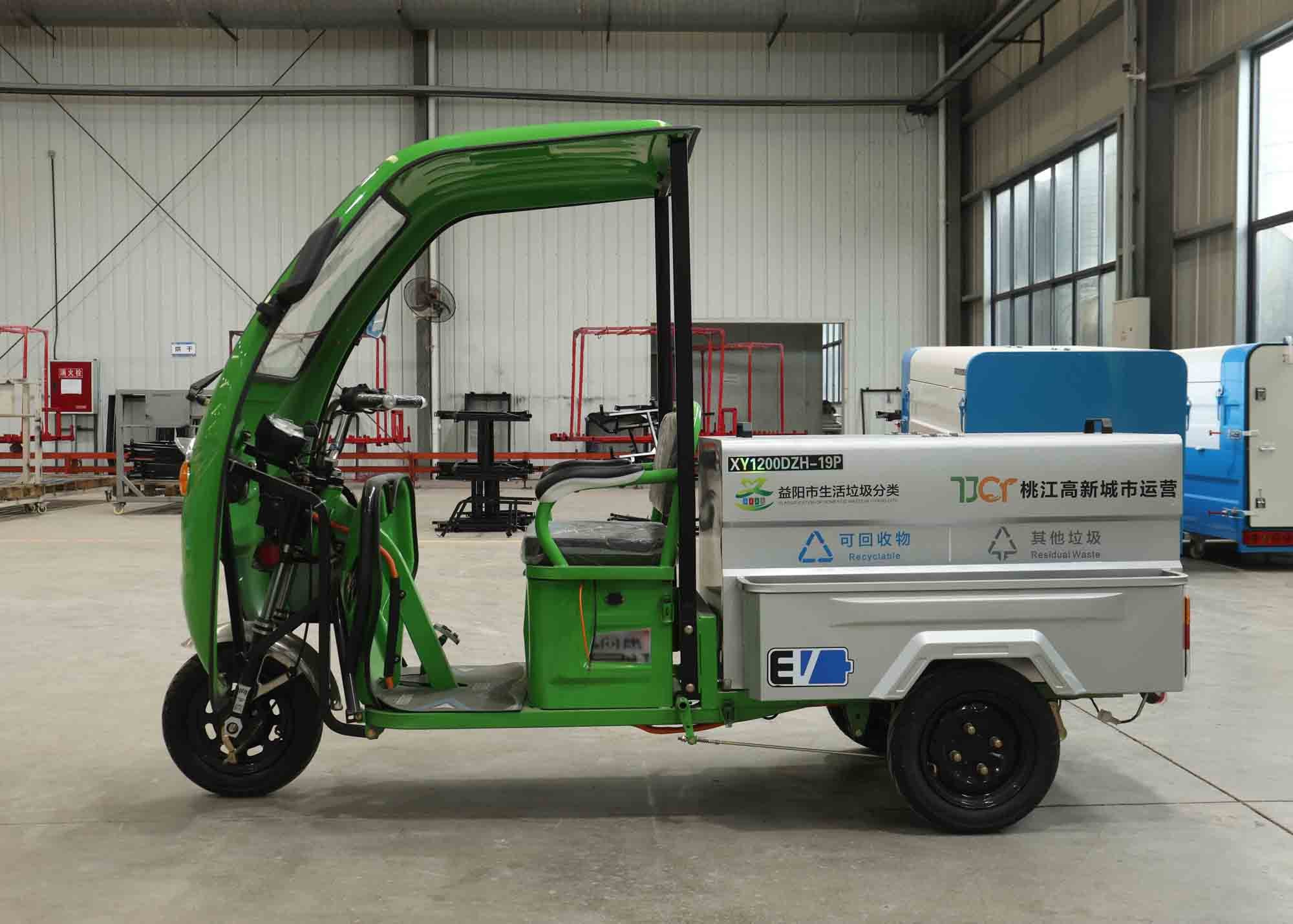

Multifunctional Three Wheel Double Barrel Sunshade Sanitation Vehicle Images
